钻床夹具，JAS-15固定式夹头，气动卡盘，气动夹头，油压夹头
|

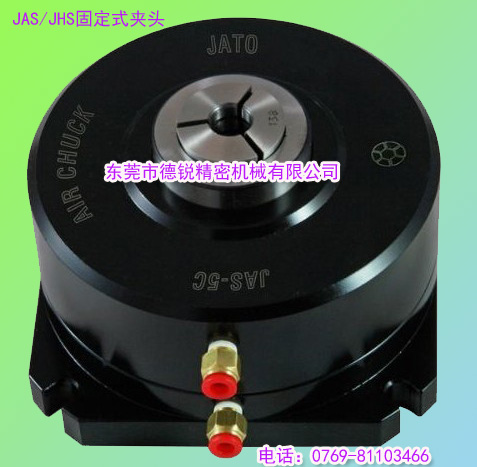

固定式气动/油压卡盘JAS/JHS系列夹头简介
朝铨油气压固定型夹头(立式夹头)具备精巧的体积，让您的工作平台能同时容纳更多固定式夹头，以提升工作效率。卡盘的高质量符合您对稳定性、高精度、防水防尘的要求，降低维修及人工成本，适合安装于各式钻铣工作机台。
- 钢制夹头本体
- 立式夹头（固定式气动油压卡盘）具高精度，高刚性，产品寿命长等优点
- 夹头防尘，防屑，防切削液
- 夹头、卡盘强制放料设计，不卡料
- 卡盘体积小，重量轻，工作速度快
|
|
固定式夹头/油气压卡盘尺寸及规格
| 型号 |
JAS-15
|
JAS-25
|
JAS-5C
|
JAS-40
|
JHS-40
|
JHS-70
|
| A |
118mm (4.65") |
144mm (5.67") |
144mm (5.67") |
168mm (6.61") |
144mm (5.67") |
188mm (7.40") |
| B |
40mm (1.57") |
55mm (1.27") |
55mm (1.27") |
95mm (3.74") |
95mm (3.74") |
136mm (5.35") |
| C |
14mm (0.55") |
26mm (1.02") |
26mm (1.02") |
38mm (1.50") |
38mm (1.50") |
68mm (2.68") |
| D |
90mm (3.54") |
100mm (3.94") |
100mm (3.94") |
100mm (3.94") |
100mm (3.94") |
155mm (6.10") |
| E |
76mm (2.99") |
108mm (4.25") |
95mm (3.74") |
96mm (3.78") |
94mm (3.70") |
96mm (3.78") |
|
F
|
64mm (2.52") |
75mm (2.95") |
75mm (2.95") |
76mm (2.99") |
73mm (2.87") |
73mm (2.87") |
| G |
98mm (3.86") |
118mm (4.65") |
118mm (4.65") |
136mm (5.35") |
118mm (4.65") |
155mm (6.10") |
| H |
8.5mm (0.33") |
8.5mm (0.33") |
8.5mm (0.33") |
11mm (0.43") |
8.5mm (0.33") |
11mm (0.43") |
| 工作筒夹/副爪 |
YB-15型弹性筒夹 |
YB-25型弹性筒夹 |
5C型弹性筒夹 |
C-40型副爪 |
C-40型副爪 |
C-70型副爪 |
| 气压/油压驱动 |
气压/油压 |
气压/油压 |
气压/油压 |
气压 |
油压 |
油压 |
| 工作压力 |
3-15kg/cm2
(43-214psi) |
3-15kg/cm2
(43-214psi) |
3-15kg/cm2
(43-214psi) |
3-8kg/cm2
(43-114psi) |
3-20kg/cm2
(43-286psi) |
3-20kg/cm2
(43-286psi) |
| 最大夹径 |
14mm
(0.55")
|
26mm
(1.02") |
26mm
(1.02") |
38mm
(1.50") |
38mm
(1.50") |
68mm
(2.68") |
| 活塞面积 |
79cm2 (12.2in2) |
112cm2 (17.4in2) |
112cm2 (17.4in2) |
216cm2 (33.5in2) |
82cm2 (12.7in2) |
106cm2 (16.4in2) |
| 夹持力 |
3750kgf@7kg/cm2
(8250lbf@100psi) |
4950kgf@7kg/cm2
(10890lbf@100psi) |
4950kgf@7kg/cm2
(10890lbf@100psi) |
5550kgf@7kg/cm2
(12210lbf@100psi) |
6100kgf@20kg/cm2
(13420lbf@286psi) |
7800kgf@20kg/cm2
(17160lbf@286psi) |
| 夹头净重 |
5kgs (11lbs) |
9kgs (19.8lbs) |
9kgs (19.8lbs) |
12.5kgs (27.5lbs) |
8.5kgs (18.7lbs) |
13.5kgs (29.7lbs) |
|
